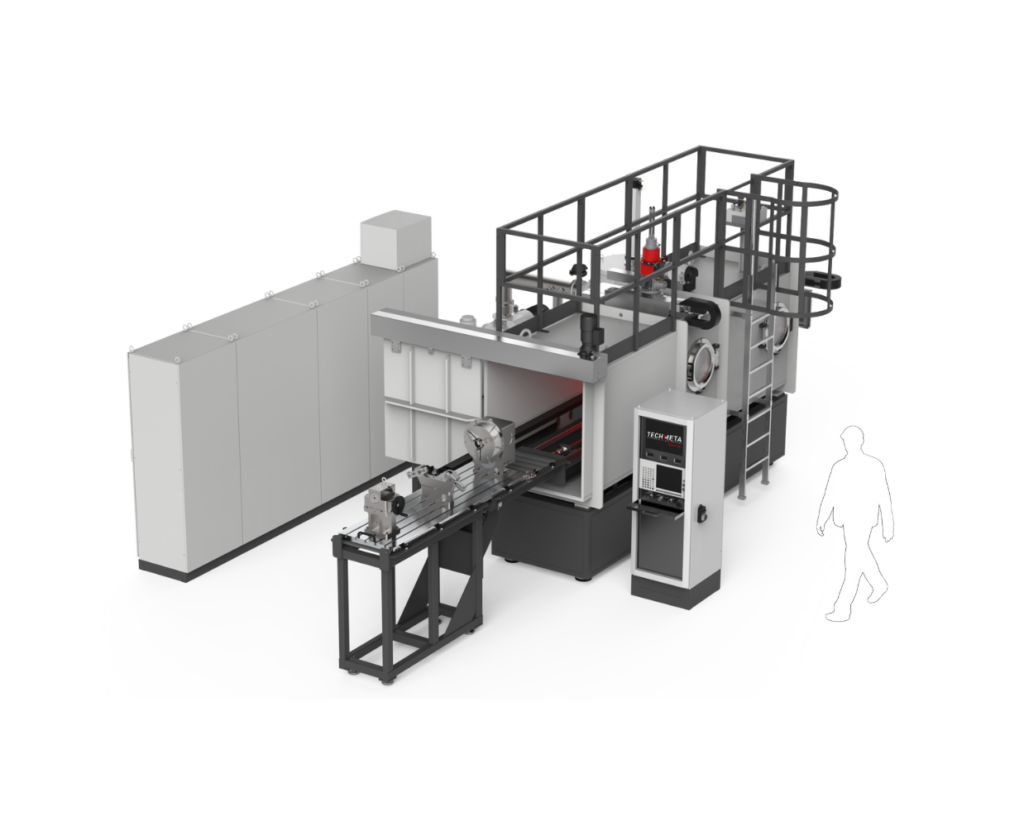

NORMA, electron-beam welding machine

Chamber size
W x H x L (mm)
from 600 x 1000 x 750
to 2000 x 1500 x 1500

Vacuum level
Primary: down to 1 10-2 mbar
Secondary: down to 1 10-4 mbar

Electron gun
Chamber outer electron gun
Accelerating voltage:
from 20 kV to 60 kV
Power range:
from 6 kW to 60 kW
Vertical or horizontal welding position

Numerical control
Interpolation between all electrical and mechanical axis

Loading
Manual

Motions
Table’s size according to chamber’s length
Stroke 200mm or 500mm
Electron gun’s horizontal or vertical linear movement, outside the chamber
Table’s vertical stroke of 100 mm or 200 mm or on request
Rotary with horizontal or vertical axis

Options

Rotary movement’s
tilting device

Pulsed
beam

Seam
locator

Welding
parameter recorder

Tailstock

Shifting of
electron gun

at different locations on the chamber’s wall

Rotary
multi-chucks

device
