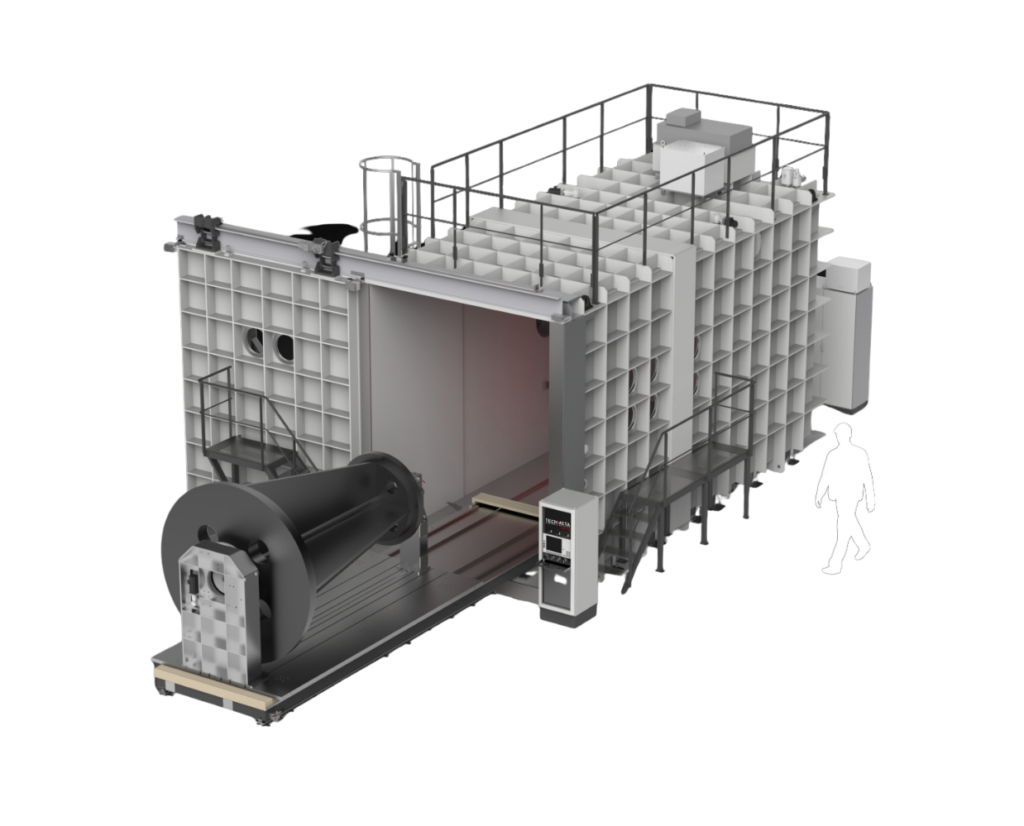

GENOVA, electron-beam welding machine

Chamber size
W x H x L (mm)
from 1450 x 2750 x 2800
to 5500 x 6800 x 7100

Vacuum level
Primary: down to 1 10-2 mbar
Secondary: down to 1 10-4 mbar

Electron gun
Chamber inner gun mounted on a gantry
Accelerating voltage:
from20kV to 60kV
Power range:
from 6kW to 60kW
Vertical or horizontal welding position

Numerical control
Interpolation between all electrical and mechanical axis

Loading
Manual

Motions
Table’s size according to chamber’s length
Stroke according to chamber’s width
Stroke according to chamber’s height
Rotary with horizontal or vertical axis
Electron gun’s motorised tilting from -30° to +90°

Options

Rotary
movement’s

tilting device

Pulsed
beam

Seam
locator

Welding
parameter

recorder

Tailstock
