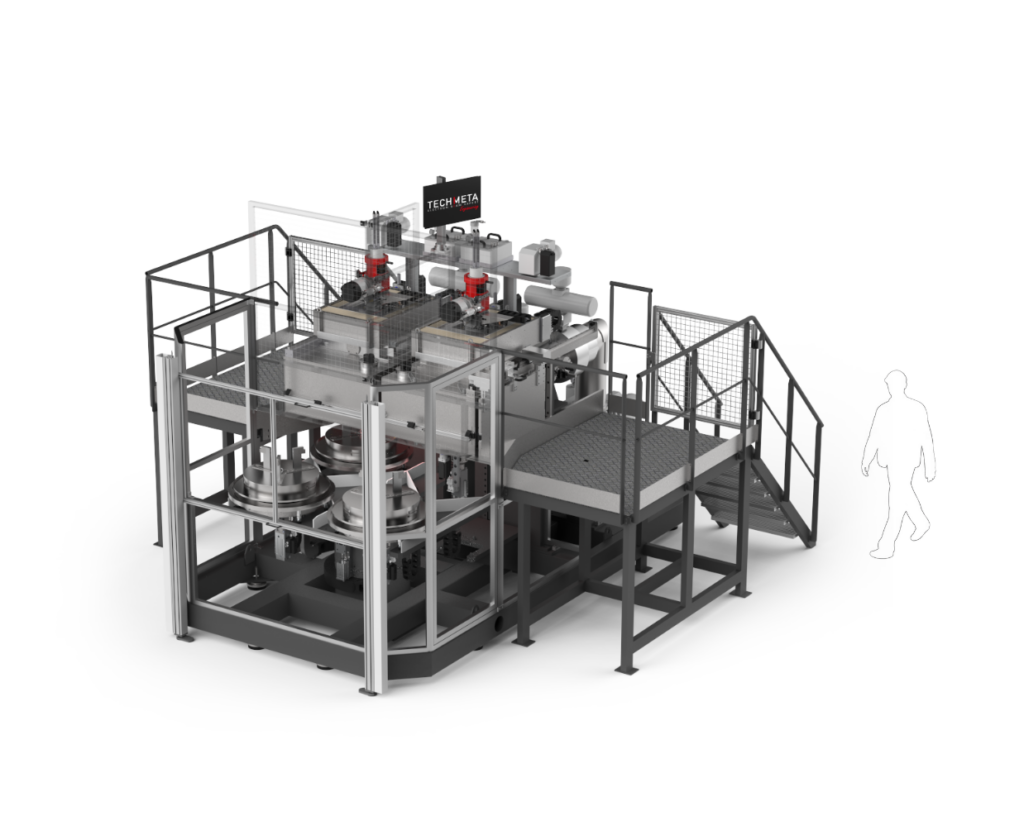

BARI, electron-beam welding machine

Chamber size
W x H x L (mm)
from 200 x 200 x 190
to 650 x 650 x 650

Vacuum level
Primary : down to 5 10-3 mbar
for a high productivity rate

Electron gun
Chamber’s outer electron gun
Accelerating voltage:
from 20 kV to 60 kV
Power range:
from 6 kW to 15 kW
Vertical or horizontal welding position

Numerical control
Interpolation between all electrical and mechanical axis

Loading
2 workstations fitted with 1 to N housing for workpieces
1 welding station
1 loading / unloading station (can be automated)

Motions
Electron gun’s horizontal or vertical linear movement up to 170mm stroke, outside the chamber
Rotary with horizontal or vertical axis

Options

Loading
automation

Pulsed
beam

Seam
locator

Welding parameter
recorder

Tailstock
