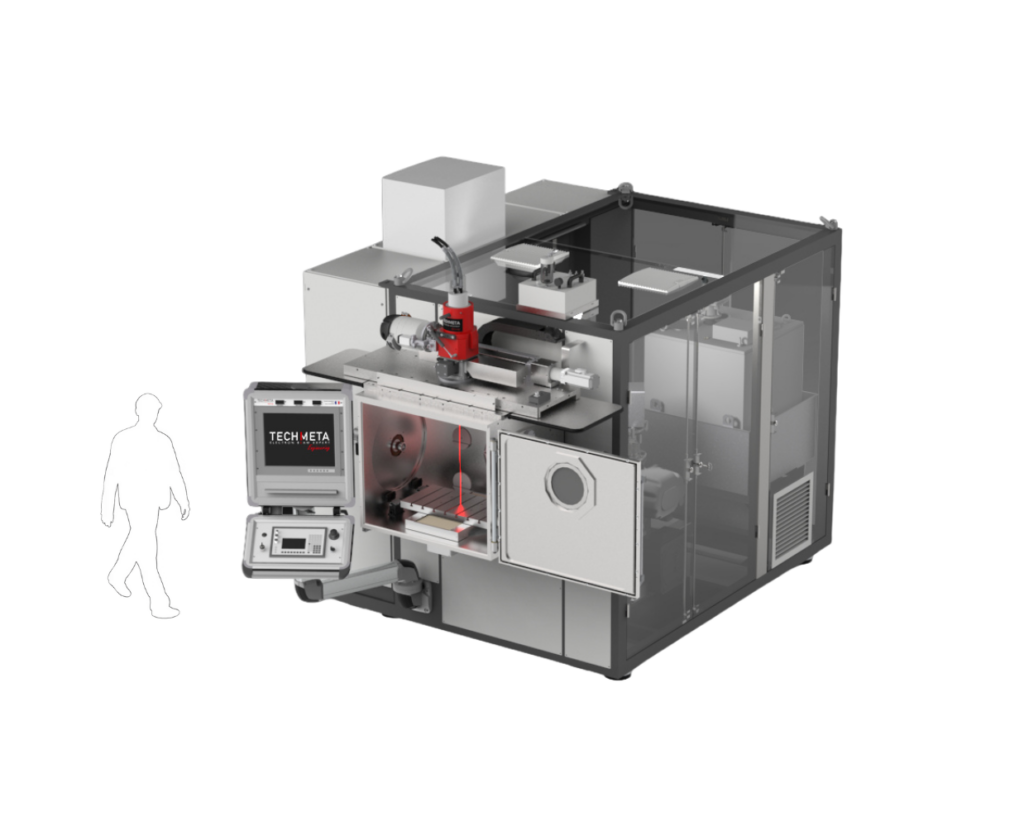

MEDARD, electron-beam welding machine

Chamber size
W x H x L (mm)
from 220 x 340 x 209
to 1600 x 350 x 370

Vacuum level
Primary: down to 1 10-2 mbar
Secondary: down 5 10-4 mbar

Chamber’s outer electron gun
Accelerating voltage:
from 20 kV to 60 kV
Power range:
from 6 kW to 15 kW
Vertical or horizontal welding position

Numerical control
Interpolation between all electrical and mechanical axis

Loading
Manual

Motions
Stroke’s table 160 – 270 – 300 mm
Stroke 200 mm or 500 mm
Electron gun’s horizontal or vertical linear movement, outside the chamber
Rotary with horizontal or vertical axis

Options

Pulsed
beam

Seam
locator

Welding
parameter recorder

Movable
control panel

Tailstock

Shifting of
electron gun

at different locations on the chamber’s wall

Double chuck’s
tilting from 0° to 90°

mount ed on a 140mm stroke linear movement
